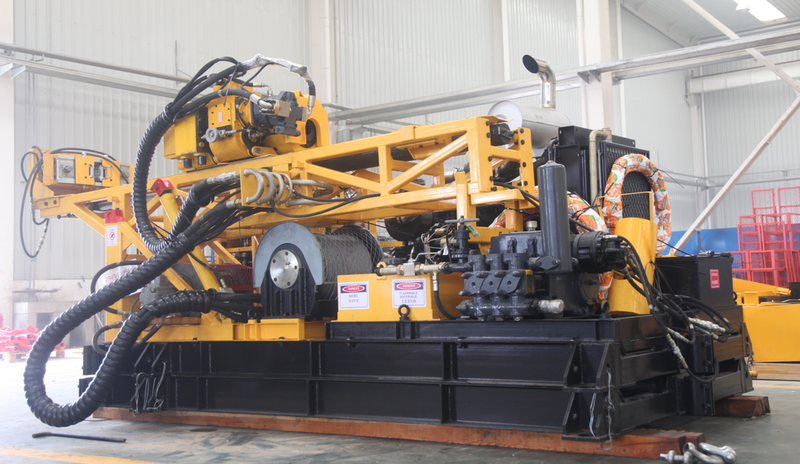

CSD1300H core drilling rig is specially designed for surface wire line core drilling. Modularized design makes the rig easy to break down and put together, facilitating transportation to most inaccessible areas. Robust structure plus strong power ensures high penetration rate and out standing reliability. Its full hydraulic concept includes virtually all operation functions that prevail on the latest models around the world.
The following high lights represent the rig’s major features:
4 shift gear box provides wide choice of torque and rotation rate;
Max chuck diameter of 117mm applies BS to PS size rods;
Less than 700 kgs weight, direct hoist mounted economizes transportation and assembly;
2m long stroke of drill head facilitates the efficiency;
Independent hydraulic jack provides great convenience;
Precise control of pressure on drill bit;
Standardized parts and components make maintenance and repairing easy;
Real time reading of drilling data on gauges on the control panel;
Mud pump and mixer powered by the rig’s hydraulic system, controlled directly on the rig’s panel;
European top grade hydraulics;
Experienced engineers plus adequate spare parts ready to provide full service.
CSD1300H SPECIFICATIONS
Drilling Capacity（for reference） | Dia of Drill Rod | Drilling Depth |
BS | 1,300m | |
NS | 1,000m | |
HS | 700m | |
PS | 400m | |
Hydraulic System | Pressure | 26MPa |
Cooling | Air Cooled | |
Power System | Model | Cummins 6BTA-5.9 |
Type | Turbo Charged | |
Power | 132KW | |
Engine RPM | 2,500rpm | |
Drill Head | Max Torque | 4,257Nm |
Max Rotation ,RPM | 1,182rpm | |
Feed Stroke | 2,000mm | |
Max Inside Diameter | 117mm | |
Max Pull | 127KN | |
Max Push | 50KN | |
Chuck Jaws | 5 pcs | |
Main Winch | Max Pull | 68KN |
Pulling Speed | 50m/min | |
Rope Diameter | 16mm | |
Rope Length | 30m | |
Wireline Winch | Max Pull | 11KN（bare drum） |
Pulling Speed | 120m/min | |
Rope Diameter | 6.6mm | |
Dump Length | 1,000m | |
Mast | Length | 10m |
Drilling Angle | 45°-90° | |
Foot Clamp | Drill Rod | BS, NS, HS, PS |
Mud Pump | BW160/10 | |
Transporting Dimensions | L×W×H | 4,700×2,150×2,000mm |
Max unit weight after dismounting |
| 700kg |
Gross Weight |
| 5,700kg |
CSD1300H SEPARATED WEIGHT
NO | ASSEMBLY | PARTS | WEIGHT(KG) |
1 | Base | Base in 2 units | 640/unit |
2 | Drill Head | Drill Head | 480 |
3 | Upper Mast Set | Crown Block | 360 |
Upper Mast | |||
Upper Tray | |||
4 | Middle Mast Set | Middle Mast | 292 |
Middle Tray | |||
Rod Supporter | |||
5 | Lower Mast Set | Lower Mast | 660 |
Lower Tray | |||
Feed Cylinder | |||
Head Carriage | |||
Cylinder Guide | |||
6 | Power Unit | Diesel Engine | 650 |
Engine Muffler | |||
Bracket | |||
7 | Engine Accessories | Water Tank without antifreeze | 275 |
Oil cooler | |||
Battery set | |||
Bracket | |||
8 | Hydraulic System | Hydraulic pumps | 665 |
Hydraulic Bracket | |||
Oil Tank | |||
Oil Hoses | |||
Control Panel | |||
9 | Rig Tower Base | Tower Base | 570 |
Main Winch | |||
Lift Cylinder | |||
10 | Mud Pump Set | Mud Pump | 500 |
Diesel Tank | |||
Connection Frame | |||
Supporting Seat | |||
11 | Wireline winch | Including rope in 1,000m | 285 |
12 | Foot Clamp Set | Foot Clamp&Foot Pad | 190 |
13 | Mud Mixer | Mud Mixer | 20 |
14 | Mast Backstay Legs | Mast Backstay Legs | 70 |
